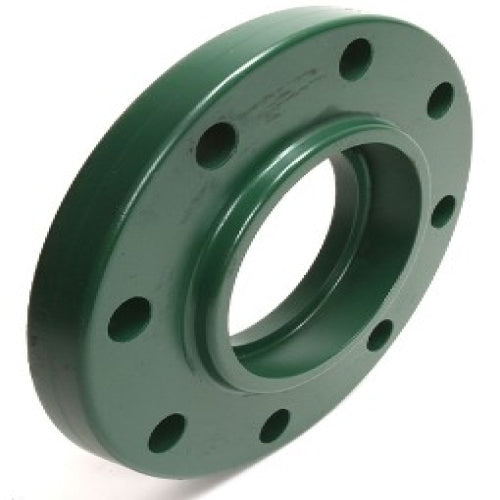

Weldbend 160-022-000 Raised Face Socket Weld Flange 2-1/2 in 150 lb

Product Description

Weldbend 160-022-000 is a raised face socket weld flange. It measures two and one-half inches in nominal size and is made from forged carbon steel. This flange offers a pressure class of one hundred fifty pounds and is suitable for various applications in plumbing and HVAC systems.

• Compatible with socket weld connections
• Temperature range from negative twenty to one hundred degrees Fahrenheit
• Compliant with domestic manufacturing standards

Product Highlights

The Weldbend socket weld flange provides reliability and durability. Its forged carbon steel construction ensures long-lasting performance in demanding environments.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 160-022-000

Technical Specifications

• Nominal Size: 2-1/2 in
• Inside Diameter: 2.94 in
• Outside Diameter: 7 in
• Hub Diameter: 3.56 in
• Thickness: 0.81 in
• Length Through Hub: 1.06 in
• Pressure Rating: 285 psig
• Number of Bolt Holes: 4
• Bolt Circle Diameter: 5-1/2 in
• Bolt Hole Size: 3/4 in
• Temperature Rating: -20 to 100 deg F
• Domestic/Import: Domestic
