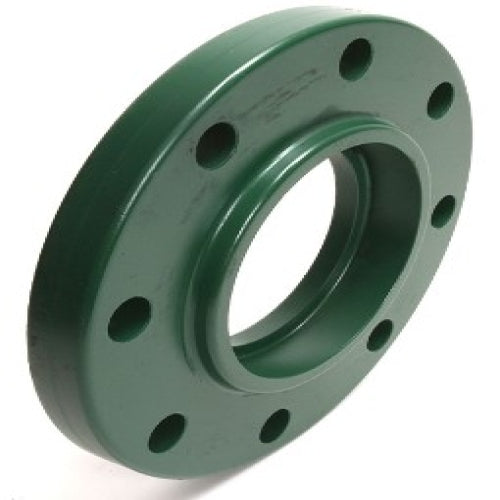

Weldbend 160-011-000 Socket Weld Flange 150 lb SCH 40/STD

Product Description

The Weldbend 160-011-000 is a socket weld flange designed for various piping applications. This product features a raised face and a nominal size of one and one-quarter inches. Made from forged carbon steel, it meets various industry standards for pressure ratings and durability.

• Pressure rating of 285 psig
• Temperature range from minus twenty to one hundred degrees Fahrenheit
• Designed for easy installation with four bolt holes

Product Highlights

This socket weld flange is ideal for connecting pipes in harsh environments while ensuring high durability and reliability.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 160-011-000

Technical Specifications

• Nominal Size: 1-1/4 in
• Inside Diameter: 1.7 in
• Outside Diameter: 4.62 in
• Thickness: 0.56 in
• Bore Size: SCH 40/STD
• Hub Diameter: 2.31 in
• Length Through Hub: 3/4 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Bolt Circle Diameter: 3-1/2 in
• Number of Bolt Holes: 4
• Bolt Hole Size: 5/8 in
• Material: Forged Carbon Steel
• Domestic/Import: Domestic
