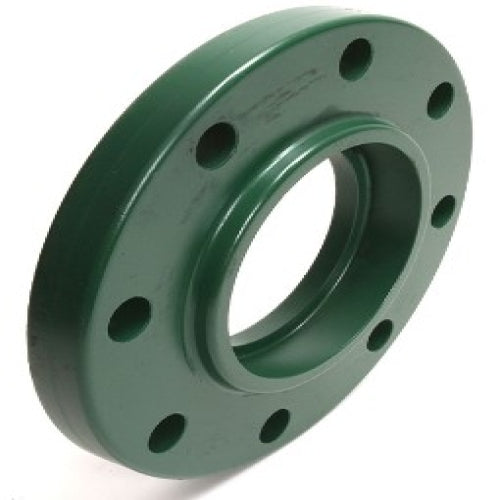

Weldbend 160-003-000 Raised Face Socket Weld Flange, 3/4 in, Forged Carbon Steel, 150 lb, SCH 40/STD Bore

Product Description

The Weldbend Raised Face Socket Weld Flange, MPN 160-003-000, is designed for high-performance applications. This flange is made from forged carbon steel, suitable for various piping systems. It has a nominal size of three-fourths inch and is ideal for industrial use.

• Manufactured from durable forged carbon steel.
• Rated for a pressure of 285 psig.
• Suitable for temperatures from -20 to 100 degrees Fahrenheit.

Product Highlights

The flange is designed with a raised face, ensuring a secure seal in piping systems, making it a reliable choice for HVAC, plumbing, and other applications.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 160-003-000

Technical Specifications

• Nominal Size: 3/4 in
• Inside Diameter: 1.09 in
• Thickness: 0.44 in
• Hub Diameter: 1-1/2 in
• Length Through Hub: 0.56 in
• Outside Diameter: 3.88 in
• Bolt Circle Diameter: 2-3/4 in
• Number of Bolt Holes: 4
• Bolt Hole Size: 5/8 in
• Bore Size: SCH 40/STD
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Type: Raised Face
• Domestic/Import: Domestic
• Standards/Approvals: ASME SA105/B16.5|ASTM A105
