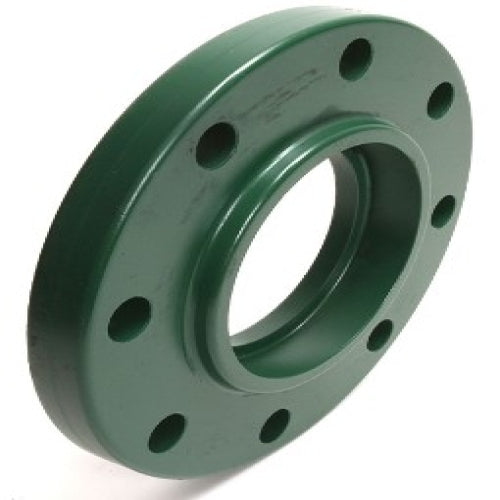

Weldbend 160-002-000 Raised Face Socket Weld Flange 150 lb 1/2 in

Product Description

The Weldbend® 160-002-000 is a raised face socket weld flange made from forged carbon steel. This flange has a nominal size of one half inch and meets the requirements for a 150 lb pressure rating. It is suitable for various applications in piping systems, offering strength and reliability.

• Material: Forged Carbon Steel
• Pressure Rating: 285 psig
• Temperature Range: -20 to 100 degrees Fahrenheit

Product Highlights

This socket weld flange is designed for high-pressure applications and provides a secure fitting for pipelines.

Product Information

Standard Information

• Manufacturer: Weldbend
• Part Number: 160-002-000

Technical Specifications

• Nominal Size: 1/2 in
• Inside Diameter: 0.88 in
• Outside Diameter: 3-1/2 in
• Thickness: 0.38 in
• Bolt Circle Diameter: 2.38 in
• Number of Bolt Holes: 4
• Bolt Hole Size: 5/8 in
• Length Through Hub: 0.56 in
• Hub Diameter: 1.19 in
• Bore Size: SCH 40/STD
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Type: Raised Face
• Domestic/Import: Domestic
• Standards/Approvals: ASME SA105/B16.5|ASTM A105
