Weldbend 151-060-000 Lap Joint Flange 150 lb (6 in) Replacement MPN

Product Description

The Weldbend Lap Joint Flange, MPN 151-060-000, is designed for applications requiring a robust and reliable connection. This carbon steel flange features a six-inch nominal size and supports a pressure rating of two hundred eighty-five psig. It is suitable for standard installations that deal with various temperature settings, ranging from negative twenty to one hundred degrees Fahrenheit.

• Nominal size of six inches
• Constructed from durable carbon steel
• Pressure rating of two hundred eighty-five psig

Product Highlights

This flange is ideal for connecting pipes where flexibility is required. Its design allows for easy alignment without needing special tools, making it suitable for domestic applications.

Product Information

Standard Information

• Manufacturer: Weldbend
• Material: Carbon Steel

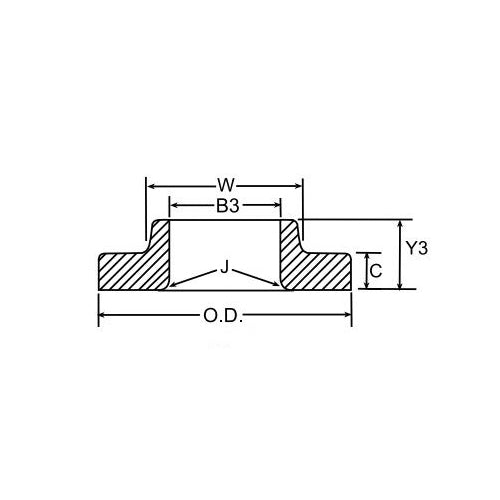

Technical Specifications

• Nominal Size: 6 in
• Thickness: 1 in
• Bolt Circle Diameter: 9-1/2 in
• Bolt Hole Size: 7/8 in
• Number of Bolt Holes: 8
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Hub Diameter: 7.56 in
• Length Through Hub: 1.56 in
