Weldbend 151-050-000 Lap Joint Flange, 5 in, Carbon Steel, 150 lb, Domestic

Product Description

The Weldbend Lap Joint Flange with MPN 151-050-000 is designed for efficient attachment in piping systems. It has a nominal size of five inches and is made from carbon steel for durability.

• Meets ASME standards.
• Suitable for various industrial applications.
• Designed for pressure ratings up to 285 psig.

Product Highlights

This flange is ideal for lap joint installations, providing reliable performance in various environments.

Product Information

Standard Information

• Manufacturer: Weldbend
• Part Number: 151-050-000

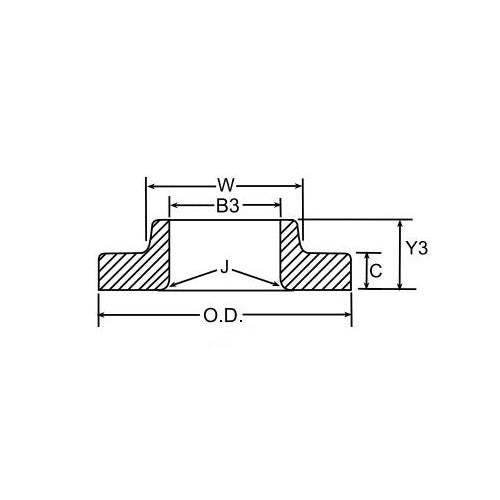

Technical Specifications

• Nominal Size: 5 in
• Material: Carbon Steel
• Thickness: 0.94 in
• Bolt Circle Diameter: 8-1/2 in
• Number of Bolt Holes: 8
• Bolt Hole Size: 7/8 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Outside Diameter: 10 in
• Hub Diameter: 6.44 in
• Length Through Hub: 1.44 in
• Domestic/Import: Domestic
• Standards/Approvals: Conforms to ASME SA105/B16.5|ASTM A105
