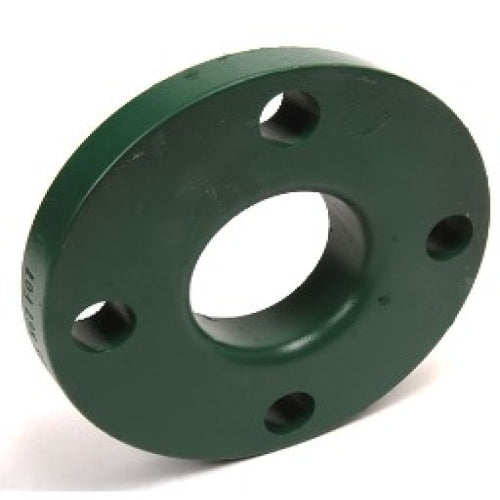

Weldbend 151-022-000 Lap Joint Flange 150 lb 2-1/2 in

Product Description

The Weldbend Lap Joint Flange, model 151-022-000, is designed for applications requiring a reliable and sturdy fastening solution. It has a nominal size of two and one half inches and is made of carbon steel. This flange is rated for 150 pounds and operates effectively between temperatures of minus twenty to one hundred degrees Fahrenheit.

• Durable carbon steel construction
• Compatible with a range of fittings and pipelines
• Pressure rating of 285 psig

Product Highlights

This flange is ideal for use in various plumbing and industrial applications.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 151-022-000

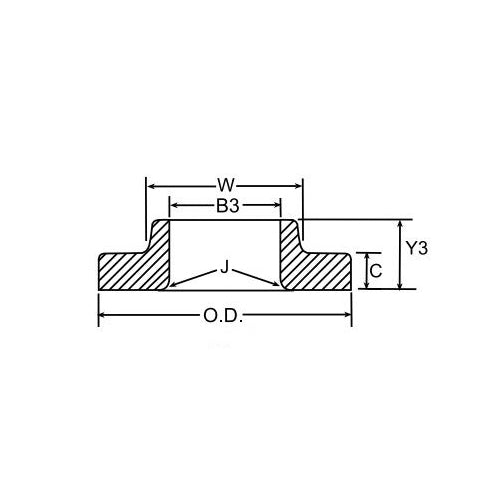

Technical Specifications

• Nominal Size: 2-1/2 in
• Thickness: 0.88 in
• Bolt Circle Diameter: 5-1/2 in
• Number of Bolt Holes: 4
• Bolt Hole Size: 3/4 in
• Outside Diameter: 7 in
• Hub Diameter: 2.56 in
• Length Through Hub: 1.12 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Domestic/Import: Domestic
• Standards/Approvals: Conforms to ASME SA105/B16.5|ASTM A105
