Product Description

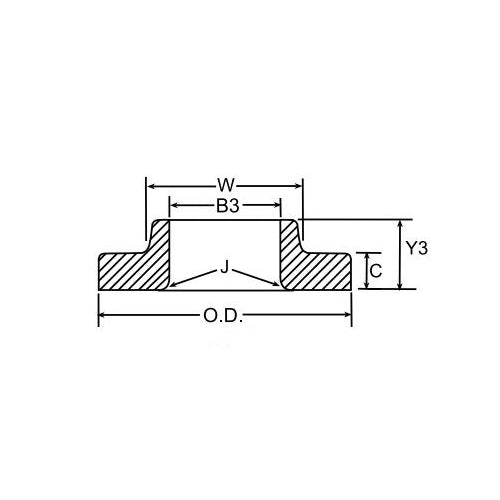

The Weldbend Lap Joint Flange (MPN: 151-003-000) is crafted from carbon steel and designed to meet various plumbing and piping needs. This flange has a nominal size of three-fourths inch. It is utilized in connections requiring flexibility or adjustment during installation.
- Nominal size of three-fourths inch.
- Pressure rating of two hundred eighty-five psig.
- Suitable for temperatures ranging from minus twenty to one hundred degrees Fahrenheit.
Product Highlights
This lap joint flange features four bolt holes and a half-inch thickness for structural integrity, making it an essential component for piping systems.
Product Information
Standard Information
-
Brand: Weldbend
-
Manufacturer Part Number: 151-003-000
Technical Specifications
-
Bolt Circle Diameter: 2-3/4 in
-
Bolt Hole Size: 5/8 in
-
Domestic/Import: Domestic
-
Hub Diameter: 1-1/2 in
-
Length Through Hub: 0.62 in
-
Material: Carbon Steel
-
Nominal Size: 3/4 in
-
Number of Bolt Holes: 4
-
Pressure Rating: 285 psig
-
Temperature Rating: -20 to 100 deg F
-
Standards/Approvals: Conforms to ASME SA105/B16.5|ASTM A105
