Product Description

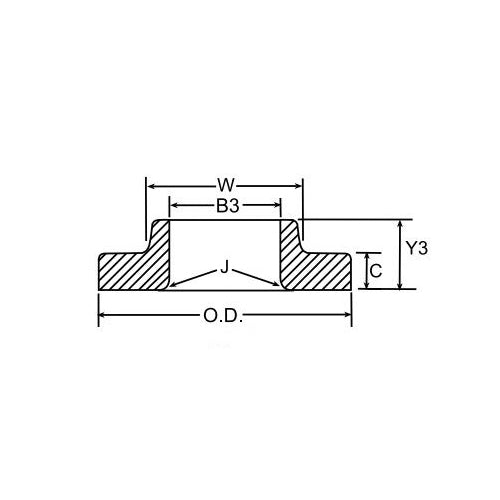

The Weldbend Lap Joint Flange, MPN 151-002-000, is designed for reliable connections in piping systems. This flange has a nominal size of half an inch, constructed from carbon steel, allowing it to withstand high-pressure environments. It features a thickness of zero point four four inches and includes four bolt holes for secure installation.
- Compatible with various piping systems
- Pressure rated up to two hundred eighty-five psig
- Features a temperature rating from minus twenty to one hundred degrees Fahrenheit
Product Highlights
Engineered for durability and performance, this lap joint flange is ideal for piping projects requiring solid joints and high pressure.
Product Information
Standard Information
-
Brand: Weldbend
-
Manufacturer Part Number: 151-002-000
Technical Specifications
-
Bolt Circle Diameter: 2.38 in
-
Bolt Hole Size: 5/8 in
-
Domestic/Import: Domestic
-
Hub Diameter: 1.19 in
-
Length Through Hub: 0.62 in
-
Material: Carbon Steel
-
Nominal Size: 1/2 in
-
Number of Bolt Holes: 4
-
Pressure Rating: 285 psig
-
Standards/Approvals: Conforms to ASME SA105/B16.5|ASTM A105
-
Temperature Rating: -20 to 100 deg F
