Weldbend 14A-050-040 Flange Power 5 x 4 in 150 lb

Product Description

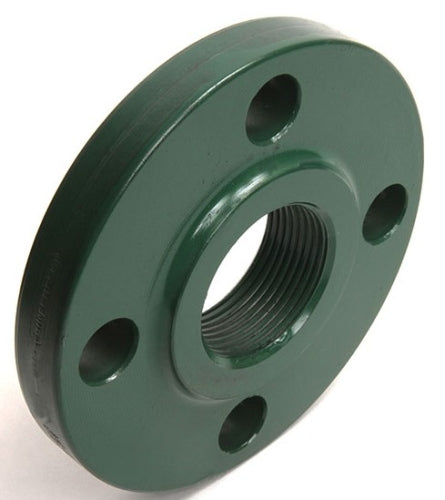

The Weldbend Reducing Flange, part number 14A-050-040, is designed for effective and reliable connections in piping systems. This flange features a nominal size of five by four inches and utilizes a threaded connection for easy installation. It is made of carbon steel and is suitable for various applications, offering a pressure rating of two hundred eighty-five psig and a class of one hundred fifty lb.

• Nominal Size: 5 x 4 inches
• Pressure Class: 150 lb
• Material: Carbon Steel

Product Highlights

This reducing flange is ideal for connecting pipes in environments where strength and durability are essential. The raised face design promotes better sealing and leak prevention.

Product Information

Standard Information

• Connection Type: Thread
• Domestic/Import: Domestic

Technical Specifications

• Nominal Size: 5 x 4 inches
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Type: Raised Face
• Material: Carbon Steel
