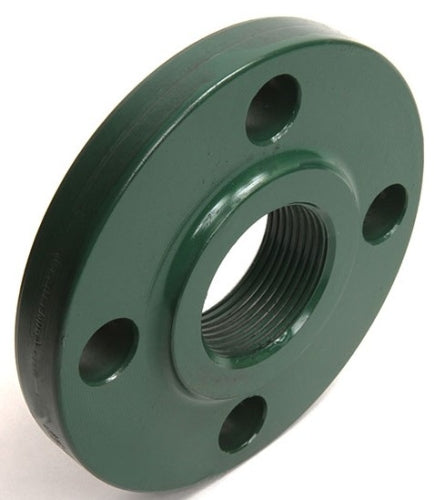

Weldbend 14A-030-022 Raised Face Reducing Flange 3 x 2-1/2 in

Product Description

Weldbend Reducing Flange with MPN 14A-030-022 has a nominal size of three inches by two and a half inches. This flange features a raised face and is designed for thread connection. It supports a pressure rating of two hundred eighty-five psig and is classified as a one hundred fifty lb flange. The temperature range for this product is from negative twenty degrees to one hundred degrees Fahrenheit. This flange is made from carbon steel and is categorized as domestic.

• Nominal Size: 3 x 2-1/2 in
• Pressure Rating: 285 psig
• Material: Carbon Steel

Product Highlights

This reducing flange is ideal for various piping applications and is compliant with ASME SA105/B16.5 and ASTM A105 standards.

Product Information

Standard Information

• Manufacturer: Weldbend
• MPN: 14A-030-022

Technical Specifications

• Connection Type: Thread
• Domestic/Import: Domestic
• Material: Carbon Steel
• Nominal Size: 3 x 2-1/2 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Type: Raised Face
