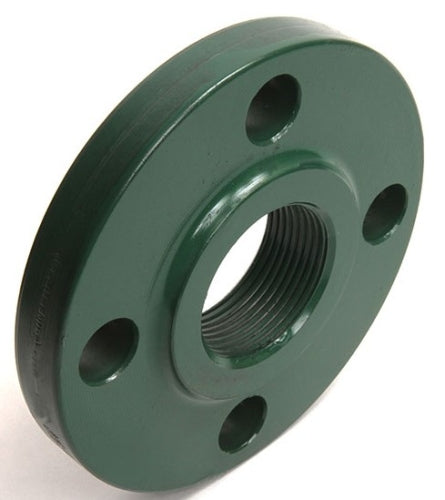

Weldbend 14A-030-020 Raised Face Reducing Flange 3 x 2 in 150 lb

Product Description

Weldbend Reducing Flange with MPN 14A-030-020 is designed for use in piping systems. This product features a raised face and has a nominal size of three inches by two inches. The flange has a thread connection and is capable of withstanding a pressure rating of two hundred eighty-five psig. Suitable for a pressure class of one hundred fifty pounds, this flange operates effectively within a temperature range of negative twenty to one hundred degrees Fahrenheit. It is made of forged carbon steel and is categorized as a domestic import.

• Nominal Size: 3 x 2 inches
• Pressure Rating: 285 psig
• Material: Forged Carbon Steel

Product Highlights

This flange is ideal for connecting pipes in various applications. It provides durability and reliability in high-pressure environments.

Product Information

Standard Information

• Manufacturer: Weldbend
• Part Number: 14A-030-020

Technical Specifications

• Connection Type: Thread
• Domestic/Import: Domestic
• Material: Forged Carbon Steel
• Nominal Size: 3 x 2 inches
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Type: Raised Face
