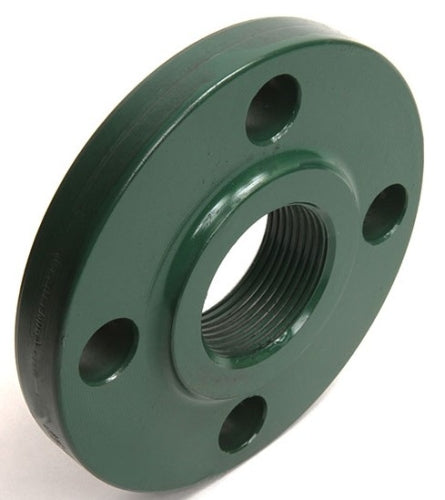

Weldbend 14A-012-010 Raised Face Reducing Flange, 1-1/2 x 1 in Nominal, Carbon Steel, Thread Connection, 150 lb

Product Description

The Weldbend 14A-012-010 is a reducing flange designed for thread connection applications. It is made of carbon steel and features a nominal size of one and a half by one inch. This flange operates at a pressure rating of two hundred eighty-five psig and is suitable for use in temperatures ranging from negative twenty to one hundred degrees Fahrenheit.

• Connection Type: Thread
• Pressure Class: 150 lb
• Domestic manufacturing

Product Highlights

This flange is ideal for piping systems requiring a smooth transition between different pipe sizes while providing reliability and strength.

Product Information

Standard Information

• Brand: Weldbend
• Part Number: 14A-012-010

Technical Specifications

• Connection Type: Thread
• Domestic/Import: Domestic
• Material: Carbon Steel
• Nominal Size: 1-1/2 x 1 in
• Pressure Rating: 285 psig
• Standards/Approvals: ASME SA105/B16.5, ASTM A105
• Temperature Rating: -20 to 100 deg F
• Type: Raised Face
