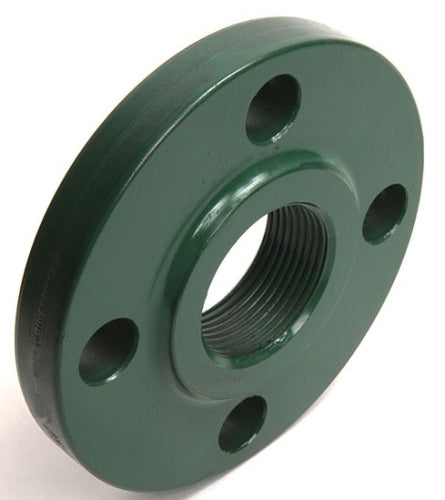

Weldbend 141-020-000 Flat Face Flange 150 lb 2 in

Product Description

The Weldbend 141-020-000 is a flat face flange made of carbon steel with a nominal size of two inches. It features a thread connection and is rated for 150 lb pressure class. This flange is designed to create a secure connection for piping applications.

• Material: Carbon steel
• Pressure rated up to 285 psig
• Temperature rating from -20 to 100 degrees Fahrenheit

Product Highlights

This flange is suitable for both domestic and import applications, ensuring durability and reliability in various environments.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 141-020-000

Technical Specifications

• Bolt Circle Diameter: 4-3/4 inches
• Bolt Hole Size: 3/4 inches
• Connection Type: Thread
• Domestic/Import: Domestic
• Hub Diameter: 3.06 inches
• Length Through Hub: 0.94 inches
• Thickness: 0.69 inches
• Nominal Size: 2 inches
• Number of Bolt Holes: 4
• Outside Diameter: 6 inches
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Type: Flat Face
