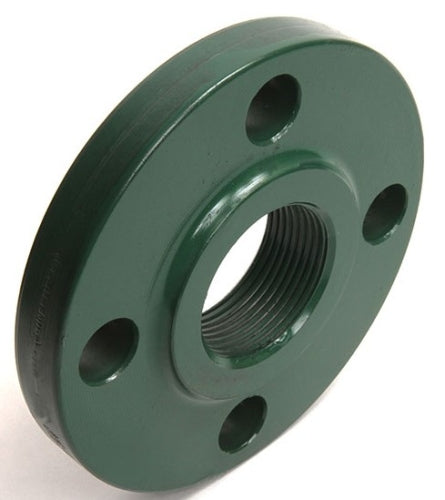

Weldbend 140-080-000 Raised Face Flange 8 in

Product Description

The Weldbend Raised Face Flange, MPN 140-080-000, is designed for robust piping systems. This flange features an eight-inch nominal size and accommodates a threaded connection type. The flange is made from carbon steel for strength and durability.

• Nominal size of eight inches
• Compatible with threaded connections
• Suitable for various industrial applications

Product Highlights

The Weldbend flange is ideal for applications requiring reliable pressure containment.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 140-080-000

Technical Specifications

• Bolt Circle Diameter: 11-3/4 in
• Bolt Hole Size: 7/8 in
• Connection Type: Thread
• Domestic/Import: Domestic
• Hub Diameter: 9.69 in
• Length Through Hub: 1.69 in
• Material: Carbon Steel
• Nominal Size: 8 in
• Number of Bolt Holes: 8
• Outside Diameter: 13-1/2 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Thickness: 1.08 in
• Type: Raised Face
