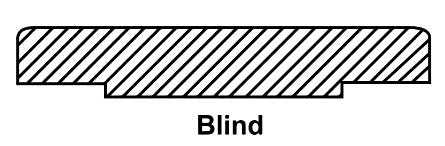

Weldbend 130080000 8 Raised Face Blind Flange Class 150

Product Description

The Weldbend 130080000 is an eight-inch raised face blind flange made from forged carbon steel. It is suitable for various industrial applications including schools, refineries, and factories. This flange is designed to fit nominal pipe sizes and meets ASTM A105 and ASME SA105 specifications.

• Flange fitting designed for raised face and blind application
• Pressure rating of class 150 at temperatures between -20 to 100 degrees Fahrenheit
• Constructed from durable carbon steel

Product Highlights

This blind flange is ideal for high-pressure environments. It allows for easy connection and disconnection of pipelines while maintaining system integrity.

Product Information

Standard Information

• Manufacturer: Weldbend
• UPC: 670346235208

Technical Specifications

• Material: Carbon Steel
• Nominal Pipe Size: 8 Inch
• Flange Outside Diameter: 13.5 Inch
• Thickness: 1.06 Inch
• Pressure Rating: Class 150
• Temperature Rating: 1000 Deg F
• Number of Bolts: 8
• Bolt Circle Diameter: 11.75 Inch
