Weldbend 130060000 6 Class 150 Forged Carbon Steel Raised Face Blind Flange

Product Description

The Weldbend 130060000 is a six-inch, class 150 forged carbon steel raised face blind flange. This product is designed to provide a secure connection in various piping systems. It is suitable for different high-pressure applications.

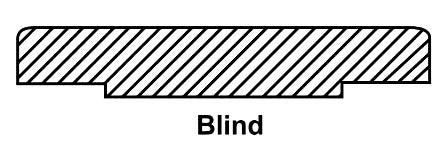

• Flange fitting type: Raised Face, Blind
• Nominal pipe size: six inches
• Material: forged carbon steel with a thickness of 0.94 inches

Product Highlights

This blind flange is ideal for use in schools, industrial plants, refineries, and factories. It can handle pressures up to class 150 at temperatures ranging from negative twenty to one hundred degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Weldbend
• Material Specification: ASTM A105/ASME SA105

Technical Specifications

• Flange Outside Diameter: eleven inches
• Thickness: 0.94 inches
• Pressure Rating: Class 150 at -20 to 100 degrees Fahrenheit
• Temperature Rating: 1000 degrees Fahrenheit
• Application: School, Industrial Plant, Refinery, Factory
• Applicable Standard: ISO 9001, ASME B16.5, MSS SP-25A
• Number of Bolts: eight
• Bolt Circle Diameter: nine point five inches
• Bolt Hole Diameter: seven eighths inches
• Bolt Diameter: three fourths inches
