Weldbend 130040000 4 Class 150 Forged Carbon Steel Raised Face Blind Flange

Product Description

The Weldbend 130040000 is a four-inch class 150 forged carbon steel raised face blind flange. This product is built according to ASTM A105/ASME SA105 specifications, making it a reliable choice for various industrial applications.

• Flange is made from carbon steel.
• Pressure rated for up to 150 psi.
• Designed for use in schools, industrial plants, refineries, and factories.

Product Highlights

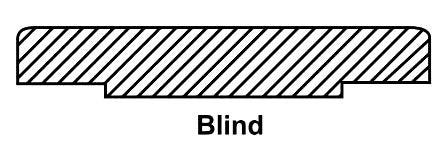

The Weldbend blind flange features a raised face for better sealing. It is ideal for closing the end of a pipe or vessel.

Product Information

Standard Information

• Manufacturer: Weldbend
• UPC: 670346234904

Technical Specifications

• Flange Type: Raised Face, Blind
• Nominal Pipe Size: 4 inches
• Flange Outside Diameter: 9 inches
• Thickness: 0.88 inches
• Pressure Rating: Class 150 at -20 to 100 degrees Fahrenheit
• Temperature Rating: 1000 degrees Fahrenheit
• Process: Forged
• Applicable Standards: ISO 9001, ASME B16.5, MSS SP-25A
• Number of Bolts: 8
• Bolt Circle Diameter: 7.5 inches
• Bolt Hole Diameter: 3/4 inch
• Bolt Diameter: 5/8 inch
