Weldbend 130030000 3 Inch Class 150 Raised Face Blind Flange Carbon Steel

Product Description

The Weldbend 130030000 is a robust 3 inch blind flange crafted from forged carbon steel, designed to withstand pressures up to 285 psi and temperatures from -20 to 100 degrees Fahrenheit. This essential plumbing component is used widely in industrial settings like chemical refineries, fertilizer plants, and more.

• Durable construction with ASTM A105/ASME SA105 carbon steel.
• Applicable standards include ISO 9001, ASME B16.5, and MSS SP-25A.
• Supports a pressure rating of Class 150, making it suitable for demanding commercial applications.

Product Highlights

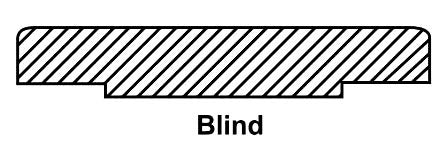

This flange's blind design is crucial for terminating pipe sections or pressure vessel openings. With a nominal pipe size of 3 inches and a flange outside diameter of 7.5 inches, it is compatible with multiple pipe systems in schools, industrial plants, and refinaries. It features a forged construction enhancing its strength and reliability in high-pressure environments.

Product Information

Standard Information

• Nominal Pipe Size: 3 inches
• Material: Forged Carbon Steel

Technical Specifications

• Type: Raised Face, Blind
• Flange Outer Diameter: 7.5 inches
• Thickness: 0.88 inches
• Pressure Rating: Class 150 at -20 to 100 degrees Fahrenheit
• Temperature Rating: 1000 degrees Fahrenheit
• Bolt Circle Diameter: 6 inches
• Bolt Hole Diameter: 0.75 inches
