Weldbend 130-012-000 Blind Flange Raised Face 1-1/2 in 150 lb

Product Description

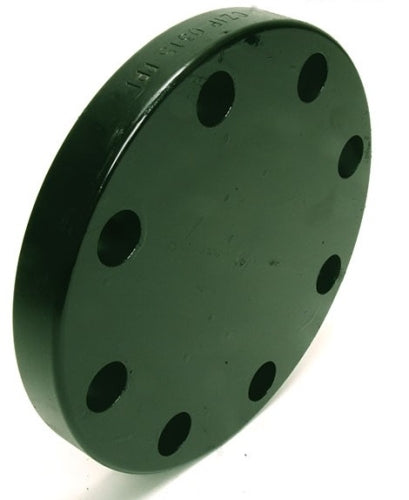

The Weldbend 130-012-000 is a raised face blind flange made of forged carbon steel. It has a nominal size of one and a half inches. This flange is commonly used to seal the end of a pipe, preventing the flow of fluids. Its design and material make it suitable for high-pressure applications.

• Nominal size: 1-1/2 inches
• Pressure class: 150 lb
• Temperature range: -20 to 1000 degrees Fahrenheit

Product Highlights

This blind flange offers durability in many settings. It can be used in plumbing and piping systems where a secure seal is needed.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 130-012-000

Technical Specifications

• Bolt Circle Diameter: 3.88 inches
• Bolt Hole Size: 5/8 inches
• Domestic/Import: Domestic
• Material: Forged Carbon Steel
• Nominal Size: 1-1/2 inches
• Number of Bolt Holes: 4
• Outside Diameter: 5 inches
• Pressure Class: 150 lb
• Pressure Rating: 285 psi
• Temperature Rating: -20 to 1000 degrees Fahrenheit
• Thickness: 0.62 inches
• Type: Raised Face
