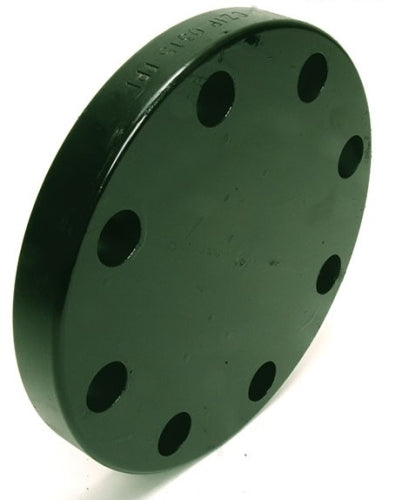

Weldbend 130-002-000 Raised Face Blind Flange 150 lb

Product Description

The Weldbend 130-002-000 is a raised face blind flange designed for a nominal size of half an inch. This flange is made from carbon steel and has a pressure class of 150 lb. With an outside diameter of three and one-half inches and a thickness of zero point thirty-eight inches, it is ideal for various piping applications.

• Compatible with standard piping systems
• Domestic manufacturing ensures high quality
• Built to withstand pressure ratings up to two hundred eighty-five psig

Product Highlights

This blind flange features a raised face design and is suited for use in multiple environments, maintaining integrity across a temperature range of negative twenty to one hundred degrees Fahrenheit.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 130-002-000

Technical Specifications

• Nominal Size: 1/2 in
• Material: Carbon Steel
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Outside Diameter: 3-1/2 in
• Thickness: 0.38 in
• Bolt Circle Diameter: 2.38 in
• Bolt Hole Size: 5/8 in
• Number of Bolt Holes: 4
• Type: Raised Face
• Domestic/Import: Domestic
