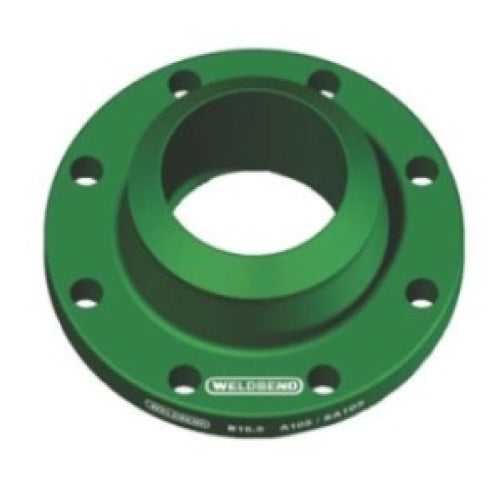

Weldbend 122-100-000 Weld Neck Flange 10 in 150 lb

Product Description

The Weldbend Weld Neck Flange, MPN 122-100-000, is designed for high-strength applications. It has a nominal size of ten inches with a robust construction. This flange features a raised face suitable for weld joints. Its forged carbon steel structure ensures durability in demanding environments.

• Nominal Size: ten inches
• Material: forged carbon steel
• Pressure Class: 150 lb

Product Highlights

This Weld Neck Flange is ideal for various industrial applications, providing reliable performance in pipelines and other systems.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 122-100-000

Technical Specifications

• Bolt Circle Diameter: 14-1/4 inches
• Bolt Hole Size: 1 inch
• Bore Size: XSB
• Dimensions: 10-3/4 inches Dia Weld
• Domestic/Import: Domestic
• Hub Diameter: 12 inches
• Inside Diameter: 10.02 inches
• Length Through Hub: 3.94 inches
• Material: Forged Carbon Steel
• Nominal Size: 10 inches
• Number of Bolt Holes: 12
• Outside Diameter: 16 inches
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Thickness: 1.12 inches
• Type: Raised Face
