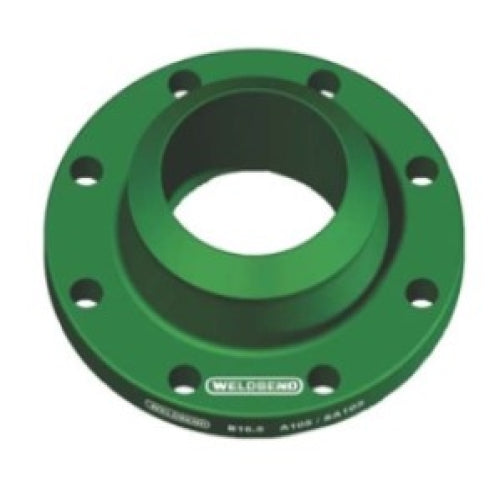

Weldbend 122-080-000 Weld Neck Flange 8 in 150 lb

Product Description

The Weldbend® 122-080-000 is a weld neck flange with a nominal size of eight inches. This product features forged carbon steel construction and a raised face design to ensure reliable connections in piping systems. It supports a pressure rating of two hundred eighty-five psig and is suitable for temperatures ranging from negative twenty to one hundred degrees Fahrenheit.

• Material: Forged Carbon Steel
• Pressure Class: 150 lb
• Type: Raised Face

Product Highlights

This weld neck flange is designed for robust applications where strength and integrity are essential.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 122-080-000

Technical Specifications

• Nominal Size: 8 in
• Inside Diameter: 7.98 in
• Outside Diameter: 13-1/2 in
• Thickness: 1.06 in
• Hub Diameter: 9.69 in
• Length Through Hub: 3.94 in
• Bolt Circle Diameter: 11-3/4 in
• Bolt Hole Size: 7/8 in
• Number of Bolt Holes: 8
• Bore Size: XS
• Temperature Rating: -20 to 100 deg F
• Pressure Rating: 285 psig
• Domestic/Import: Domestic
