Weldbend 122-060-000 Weld Neck Flange 6 in 150 lb

Product Description

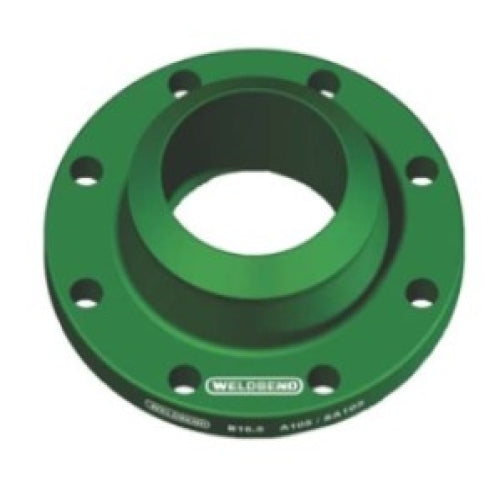

The Weldbend® 122-060-000 is a raised face weld neck flange made from forged carbon steel. This flange has a nominal size of six inches and features an inside diameter of six point zero seven inches. Its thickness measures zero point nine four inches with an XS bore. The bolt circle diameter is nine and one-half inches, equipped with eight bolt holes sized at seven-eighths of an inch.

• Pressure rating of 285 psig.
• Operating temperature range from -20 to 100 degrees Fahrenheit.
• Manufactured domestically for reliability and quality.

Product Highlights

This weld neck flange is used in various piping systems to provide a secure connection. Its design allows for a strong weld joint and reliable performance under pressure.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 122-060-000

Technical Specifications

• Material: Forged Carbon Steel
• Nominal Size: 6 in
• Pressure Class: 150 lb
• Inside Diameter: 6.07 in
• Outside Diameter: 11 in
• Hub Diameter: 7.56 in
• Length Through Hub: 3.44 in
• Thickness: 0.94 in
• Bolt Circle Diameter: 9-1/2 in
• Bolt Hole Size: 7/8 in
• Number of Bolt Holes: 8
• Bore Size: XS
• Temperature Rating: -20 to 100 deg F
• Pressure Rating: 285 psig
• Domestic/Import: Domestic
