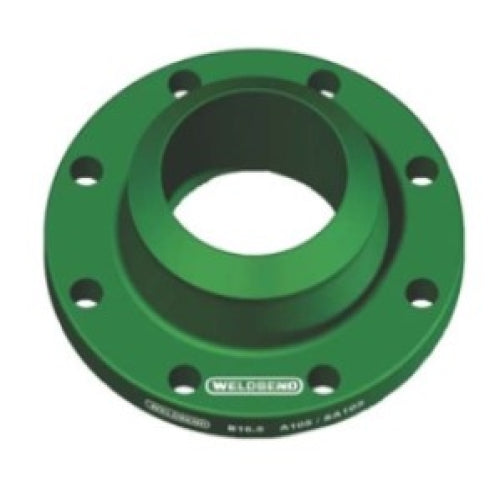

Weldbend 122-040-000 Raised Face Weld Neck Flange 4 in 150 lb

Product Description

The Weldbend 122-040-000 is a raised face weld neck flange made of forged carbon steel with a nominal size of four inches. This flange features a maximum working pressure of two hundred eighty-five psig and is suitable for applications that demand strength and reliability. It is designed for a temperature range from negative twenty to one hundred degrees Fahrenheit.

• Bolt circle diameter is seven and one-half inches.
• Contains eight bolt holes with a bolt hole size of three-quarters of an inch.
• Forged carbon steel ensures durability and longevity.

Product Highlights

This flange is ideal for use in piping systems where high pressure and temperature resistance are required. It ensures a secure and leak-free connection between pipes.

Product Information

Standard Information

• Manufacturer: Weldbend
• Type: Raised Face

Technical Specifications

• Nominal Size: 4 in
• Inside Diameter: 4.03 in
• Outside Diameter: 9 in
• Thickness: 0.88 in
• Hub Diameter: 5.31 in
• Length Through Hub: 2.94 in
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Bore Size: XS
• Material: Forged Carbon Steel
• Standards/Approvals: ASME SA105/B16.5|ASTM A105
