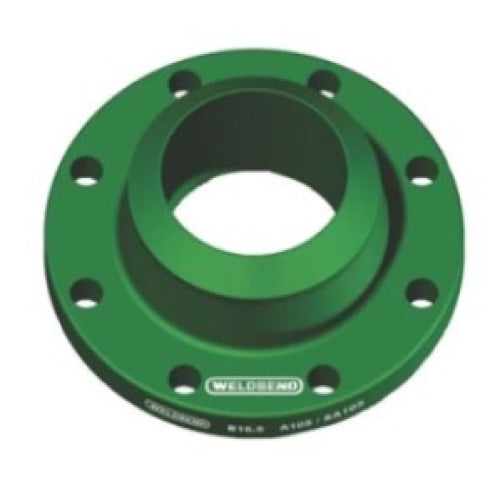

Weldbend 122-022-000 Raised Face Weld Neck Flange 150 lb 2-1/2 in

Product Description

The Weldbend Raised Face Weld Neck Flange, model 122-022-000, is made from forged carbon steel. It is designed for piping systems requiring a reliable connection. The flange has a nominal size of two and a half inches, with a thickness of zero point eighty-one inches. With an inside diameter of two point forty-seven inches, it features an XS bore and is capable of handling pressures up to two hundred eighty-five psig.

• Pressure rating up to 285 psig
• Constructed from forged carbon steel
• Temperature range from -20 to 100 degrees Fahrenheit

Product Highlights

This flange is suitable for both domestic applications and industrial settings. It is designed to provide a strong seal in high-pressure environments.

Product Information

Standard Information

• Brand: Weldbend
• Type: Raised Face

Technical Specifications

• Nominal Size: 2-1/2 in
• Inside Diameter: 2.47 in
• Length Through Hub: 2.69 in
• Hub Diameter: 3.56 in
• Thickness: 0.81 in
• Pressure Rating: 285 psig
• Material: Forged Carbon Steel
• Standards/Approvals: ASME SA105/B16.5 | ASTM A105
