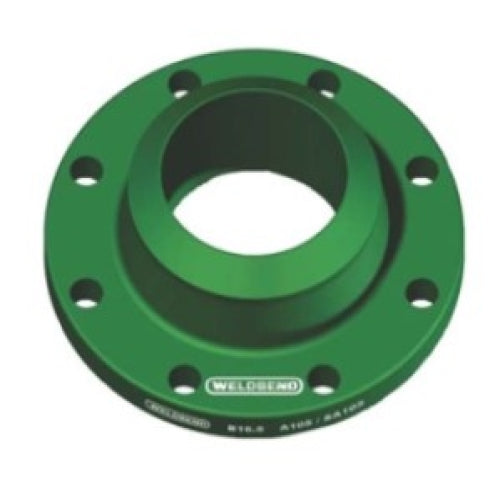

Weldbend 122-020-000 Weld Neck Flange Raised Face 2 in

Product Description

The Weldbend 122-020-000 is a raised face weld neck flange. This flange has a nominal size of 2 inches and is made from forged carbon steel. The flange is designed to be used in various piping applications, ensuring a secure and effective connection.

• Material: Forged Carbon Steel
• Pressure Rating: 285 psig
• Temperature Range: -20 to 100 degrees F

Product Highlights

This weld neck flange meets industry standards for performance and reliability, suitable for heavy-duty applications.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 122-020-000

Technical Specifications

• Nominal Size: 2 inches
• Inside Diameter: 2.07 inches
• Outside Diameter: 6 inches
• Thickness: 0.69 inches
• Bore Size: XS
• Hub Diameter: 3.06 inches
• Length Through Hub: 2.44 inches
• Number of Bolt Holes: 4
• Bolt Hole Size: 3/4 inches
• Bolt Circle Diameter: 4-3/4 inches
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 degrees F
• Domestic/Import: Domestic
