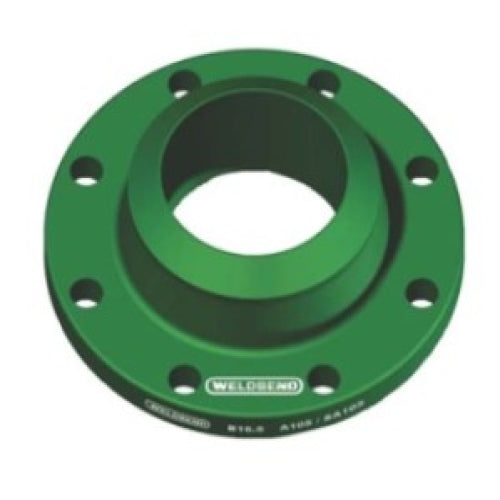

Weldbend 122-012-000 Weld Neck Flange 150 lb 1-1/2 in

Product Description

The Weldbend Weld Neck Flange, model 122-012-000, is a raised face flange designed for various piping applications. Constructed from forged carbon steel, this flange supports dynamic pressure and temperature conditions effectively.

• Nominal size of one and a half inches.
• Maximum pressure rating of two hundred eighty-five psig.
• Designed for domestic use with a longevity focus.

Product Highlights

This welded neck flange ensures a secure connection and is suitable for demanding environments.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 122-012-000

Technical Specifications

• Nominal Size: 1-1/2 in
• Thickness: 0.62 in
• Inside Diameter: 1.61 in
• Outside Diameter: 5 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Bolt Circle Diameter: 3.88 in
• Number of Bolt Holes: 4
• Bolt Hole Size: 5/8 in
• Hub Diameter: 2.56 in
• Length Through Hub: 2.38 in
• Bore Size: XS
• Material: Forged Carbon Steel
• Domestic/Import: Domestic
• Dimensions: 1.9 in Dia Weld
