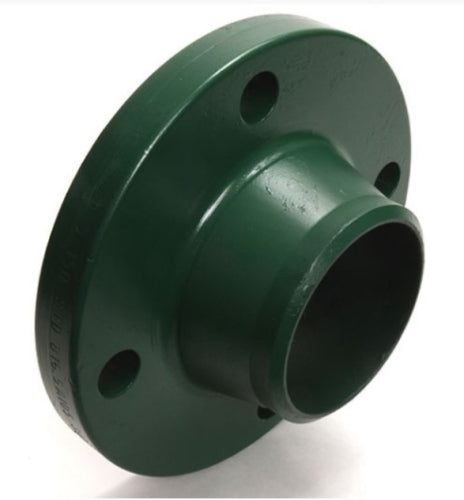

Weldbend 121-120-000 Weld Neck Flange Flat Face 12 in

Product Description

The Weldbend Weld Neck Flange with MPN 121-120-000 is a flat face flange designed for reliable connections in piping systems. This flange has a nominal size of twelve inches and is made of forged carbon steel for strength and durability.

• Flat face type for easier sealing.
• Suitable for various applications within commercial and industrial sectors.
• Manufactured to ASME SA105 standards for quality assurance.

Product Highlights

Its robust pressure rating of 285 psig ensures it can handle demanding applications, while its temperature range from negative twenty to one hundred degrees Fahrenheit makes it versatile for different environments.

Product Information

Standard Information

• Brand: Weldbend
• Type: Flat Face Flange

Technical Specifications

• Inside Diameter: 12 inches
• Nominal Size: 12 inches
• Outside Diameter: 19 inches
• Thickness: 1.19 inches
• Hub Diameter: 14.38 inches
• Length Through Hub: 4.44 inches
• Bolt Circle Diameter: 17 inches
• Bolt Hole Size: 1 inch
• Number of Bolt Holes: 12
• Pressure Rating: 285 psig
• Pressure Class: 150 lb
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Domestic/Import: Domestic
• Standards/Approvals: ASME SA105/B16.5 | ASTM A105
