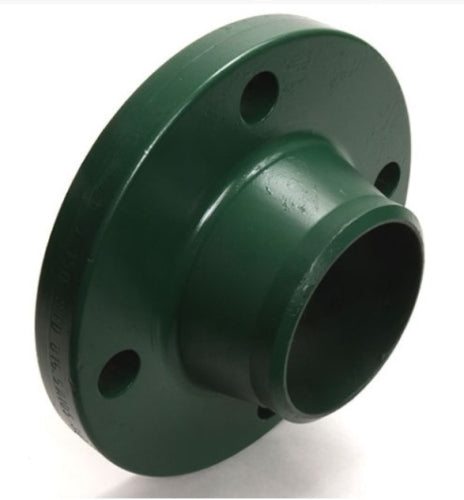

Weldbend 121-100-000 Weld Neck Flange Flat Face 10 in 150 lb

Product Description

The Weldbend 121-100-000 is a flat face weld neck flange made from forged carbon steel. It has a nominal size of ten inches and an inside diameter of ten point zero two inches. This product is designed to be robust and withstand high pressure ratings.

• Material: Forged carbon steel
• Pressure rating: 285 psig
• Bolt circle diameter: fourteen and one-quarter inches

Product Highlights

This flange is suitable for various piping applications and is designed for a temperature range from negative twenty to one hundred degrees Fahrenheit.

Product Information

Standard Information

• Brand: Weldbend
• Type: Flat Face

Technical Specifications

• Nominal Size: 10 in
• Inside Diameter: 10.02 in
• Outside Diameter: 16 in
• Thickness: 1.12 in
• Hub Diameter: 12 in
• Length Through Hub: 3.94 in
• Number of Bolt Holes: 12
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Bolt Hole Size: 1 in
• Bolt Circle Diameter: 14-1/4 in
• Domestic/Import: Domestic
• Standards/Approvals: ASME SA105/B16.5 | ASTM A105
