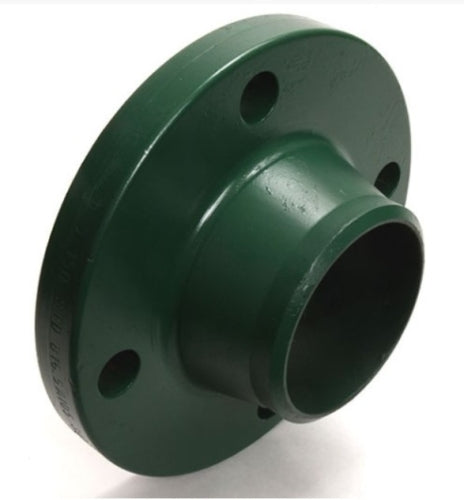

Weldbend 121-080-000 Flat Face Weld Neck Flange 8 in Replacement MPN

Product Description

The Weldbend 121-080-000 is a flat face weld neck flange made from forged carbon steel. This flange has an eight-inch nominal size with a seven point ninety-eight-inch inside diameter and a one point zero six-inch thickness. It features a bolt circle diameter of eleven and three-quarters inches and comes with eight bolt holes of seven-eighths inch size. The flange is rated for a maximum pressure of two hundred eighty-five psig and can function within a temperature range of negative twenty to one hundred degrees Fahrenheit.

• Flange material: Forged carbon steel
• Pressure rating: 285 psig
• Temperature range: -20 to 100 degrees Fahrenheit

Product Highlights

This weld neck flange is ideal for various piping systems requiring durability and reliability. It is suitable for both domestic and industrial applications.

Product Information

Standard Information

• Manufacturer: Weldbend
• Part Number: 121-080-000

Technical Specifications

• Nominal Size: 8 in
• Inside Diameter: 7.98 in
• Outside Diameter: 13.5 in
• Length Through Hub: 3.94 in
• Hub Diameter: 9.69 in
• Thickness: 1.06 in
• Number of Bolt Holes: 8
• Bolt Circle Diameter: 11.75 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Standards/Approvals: ASME SA105/B16.5 | ASTM A105
