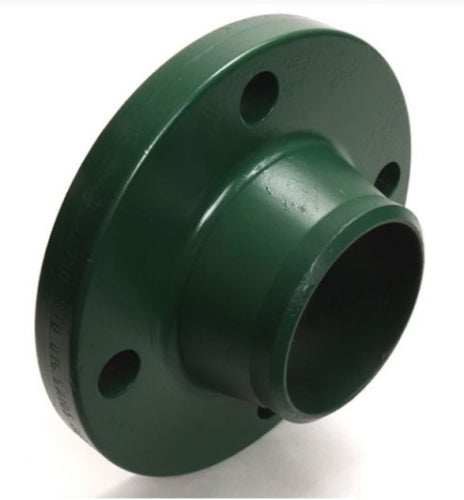

Weldbend 121-060-000 Flat Face Weld Neck Flange 6 in 150 lb

Product Description

The Weldbend 121-060-000 is a flat face weld neck flange made from forged carbon steel. It features a nominal size of six inches and is designed for a pressure rating of 150 lb. This flange is suitable for various applications in piping systems where a strong, leak-proof connection is necessary.

• Manufactured from forged carbon steel.
• Nominal size of six inches with a pressure rating of 285 psig.
• Designed for use in temperatures ranging from -20 to 100 degrees Fahrenheit.

Product Highlights

This flange is ideal for industrial and commercial piping applications, providing durable and reliable performance.

Product Information

Standard Information

• Manufacturer: Weldbend
• MPN: 121-060-000

Technical Specifications

• Nominal Size: 6 in
• Inside Diameter: 6.07 in
• Outside Diameter: 11 in
• Thickness: 0.94 in
• Hub Diameter: 7.56 in
• Length Through Hub: 3.44 in
• Bolt Circle Diameter: 9-1/2 in
• Bolt Hole Size: 7/8 in
• Number of Bolt Holes: 8
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Type: Flat Face
• Standards/Approvals: ASME SA105/B16.5, ASTM A105
• Domestic/Import: Domestic
