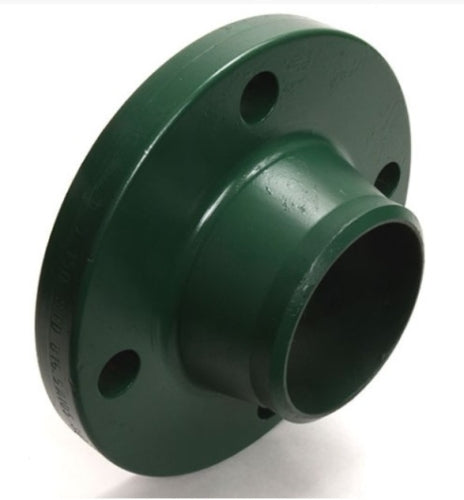

Weldbend 121-050-000 Flat Face Weld Neck Flange 5 in 150 lb

Product Description

The Weldbend® 121-050-000 is a flat face weld neck flange made of forged carbon steel. It features a nominal size of five inches with an inside diameter of five point zero five inches. This flange operates under a pressure rating of two hundred eighty-five psig and is designed for temperature ranges from negative twenty to one hundred degrees Fahrenheit.

• Type: Flat Face
• Material: Forged Carbon Steel
• Pressure Class: 150 lb

Product Highlights

This weld neck flange is ideal for a range of industrial applications where secure and reliable connections are essential.

Product Information

Standard Information

• Manufacturer: Weldbend
• Part Number: 121-050-000

Technical Specifications

• Nominal Size: 5 in
• Inside Diameter: 5.05 in
• Outside Diameter: 10 in
• Thickness: 0.88 in
• Hub Diameter: 6.44 in
• Length Through Hub: 3.44 in
• Bolt Circle Diameter: 8-1/2 in
• Bolt Hole Size: 7/8 in
• Number of Bolt Holes: 8
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Domestic/Import: Domestic
• Standards/Approvals: ASME SA105/B16.5, ASTM A105
