Weldbend 121-030-000 Weld Neck Flange 150 lb (3 in) Replacement MPN

Product Description

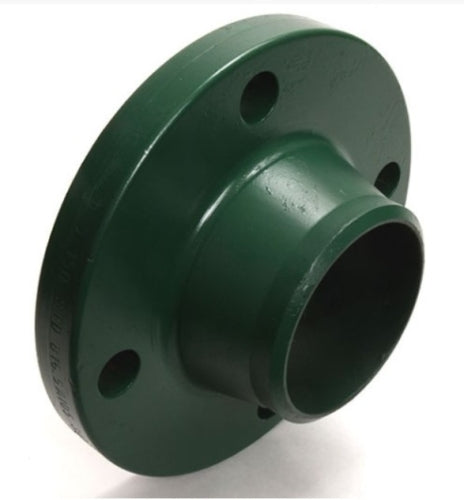

Weldbend® 121-030-000 is a weld neck flange made from forged carbon steel. The nominal size is three inches. This flange features a flat face design, making it suitable for various piping applications. It offers a robust pressure rating of 285 psig and operates effectively within a temperature range of negative twenty to one hundred degrees Fahrenheit.

• Material: Forged carbon steel
• Dimensions: Inside diameter of 3.07 inches
• Pressure Class: 150 lb

Product Highlights

This weld neck flange is ideal for high-pressure applications and provides reliable connections in domestic systems.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 121-030-000

Technical Specifications

• Nominal Size: 3 in
• Inside Diameter: 3.07 in
• Outside Diameter: 7-1/2 in
• Thickness: 0.88 in
• Hub Diameter: 4-1/4 in
• Length Through Hub: 2.69 in
• Bolt Circle Diameter: 6 in
• Bolt Hole Size: 3/4 in
• Number of Bolt Holes: 4
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Type: Flat Face
• Domestic/Import: Domestic
