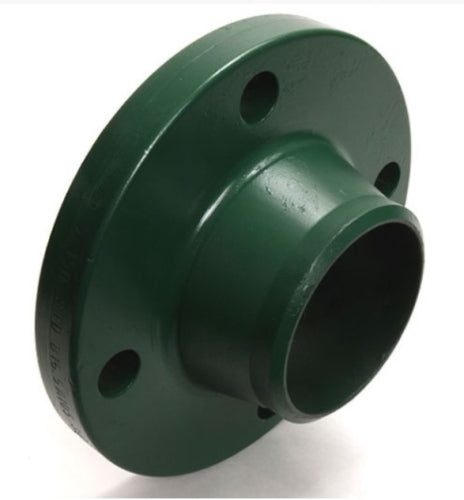

Weldbend 121-022-000 Weld Neck Flange 150 lb 2-1/2 in

Product Description

The Weldbend Weld Neck Flange, MPN 121-022-000, is designed for strong connections in piping systems. This flat face flange measures two and one-half inches nominal. Constructed from forged carbon steel, it can withstand high pressure.

• Flat face design for effective sealing.
• Rated for 150 lb pressure class.
• Temperature range from -20 to 100 degrees Fahrenheit.

Product Highlights

This flange is suitable for various industrial applications. It ensures lasting durability and reliable performance.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 121-022-000

Technical Specifications

• Nominal Size: 2-1/2 in
• Inside Diameter: 2.47 in
• Outside Diameter: 7 in
• Thickness: 0.81 in
• Hub Diameter: 3.56 in
• Length Through Hub: 2.69 in
• Bolt Circle Diameter: 5-1/2 in
• Bolt Hole Size: 3/4 in
• Number of Bolt Holes: 4
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Domestic/Import: Domestic
• Material: Forged Carbon Steel
• Type: Flat Face
