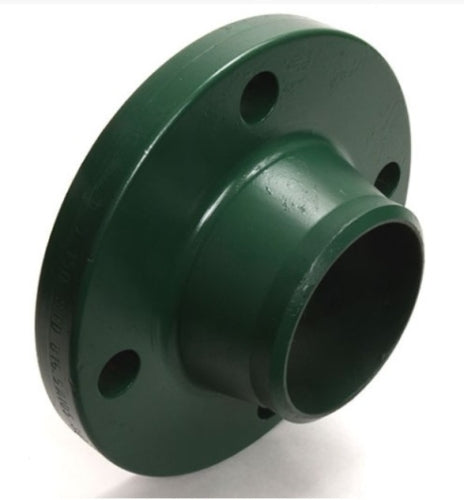

Weldbend 121-020-000 Weld Neck Flange Flat Face 2 in 150 lb

Brand: WELDBEND
SKU: 121-020-000
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Weldbend Weld Neck Flange, MPN 121-020-000, features a flat face design with a nominal size of two inches. This flange is crafted from forged carbon steel and rated for a pressure class of 150 lb. It is suitable for various plumbing and piping applications, ensuring reliability in demanding environments.

  • Material: Forged Carbon Steel
  • Pressure Rating: 285 psig
  • Temperature Range: -20 to 100 degrees Fahrenheit

Product Highlights

This flange is ideal for both domestic and commercial uses. It provides a solid connection point for piping and fitting setups.

Product Information

Standard Information

  • Brand: Weldbend
  • MPN: 121-020-000
Technical Specifications
Nominal Size
2 inches
Inside Diameter
2.07 inches
Thickness
0.69 inches
Outside Diameter
6 inches
Length Through Hub
2.44 inches
Hub Diameter
3.06 inches
Bolt Circle Diameter
4-3/4 inches
Bolt Hole Size
3/4 inches
Number of Bolt Holes
4
Pressure Class
150 lb
Pressure Rating
285 psig
Temperature Rating
-20 to 100 degrees Fahrenheit
Domestic/Import
Domestic
