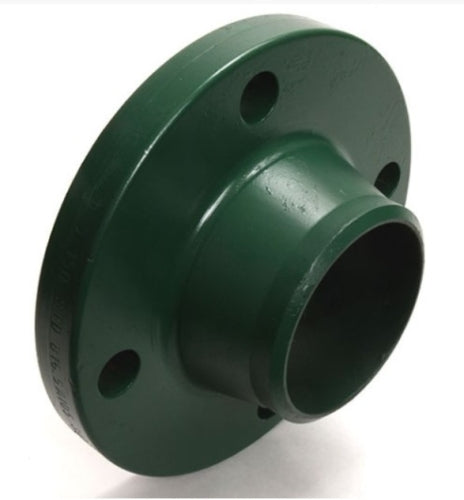

Weldbend 121-010-000 Weld Neck Flange Flat Face 1 in 150 lb

Product Description

The Weldbend 121-010-000 is a weld neck flange designed for reliable connections in piping systems. This product features a flat face design and is made from forged carbon steel, providing strength and durability.

• Nominal size of 1 inch
• 150 lb pressure class
• Temperature rating from -20 to 100 degrees Fahrenheit

Product Highlights

This flange is ideal for various applications in HVAC, plumbing, and industrial systems requiring secure piping connections.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 121-010-000

Technical Specifications

• Bolt Circle Diameter: 3.12 inches
• Bolt Hole Size: 5/8 inches
• Bore Size: SCH 40/STD
• Dimensions: 1.32 inches Dia Weld
• Domestic/Import: Domestic
• Hub Diameter: 1.94 inches
• Inside Diameter: 1.05 inches
• Length Through Hub: 2.12 inches
• Material: Forged Carbon Steel
• Nominal Size: 1 inch
• Number of Bolt Holes: 4
• Outside Diameter: 4-1/4 inches
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Thickness: 1/2 inches
• Type: Flat Face
