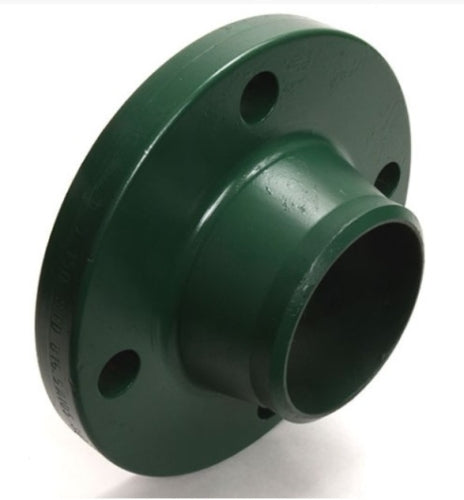

Weldbend 120-180-000 Raised Face Weld Neck Flange 18 in 150 lb

Product Description

The Weldbend Raised Face Weld Neck Flange with MPN 120-180-000 is designed for reliable use in piping systems. This flange has an eighteen-inch nominal size and is made from forged carbon steel. It features a raised face design suitable for high-pressure applications.

• Nominal Size: Eighteen inches
• Material: Forged carbon steel
• Pressure Rating: Two hundred eighty-five psig

Product Highlights

This flange is ideal for connecting pipes in various systems including water supply and industrial settings. It operates efficiently under a temperature range of negative twenty to one hundred degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Weldbend
• Part Number: 120-180-000

Technical Specifications

• Thickness: One and one-half inches
• Outside Diameter: Twenty-five inches
• Inside Diameter: Seventeen and one-quarter inches
• Hub Diameter: Nineteen and eighty-eight hundredths inches
• Length Through Hub: Five and forty-four hundredths inches
• Number of Bolt Holes: Sixteen
• Bolt Circle Diameter: Twenty-two and three-quarter inches
• Bolt Hole Size: One and one-quarter inches
