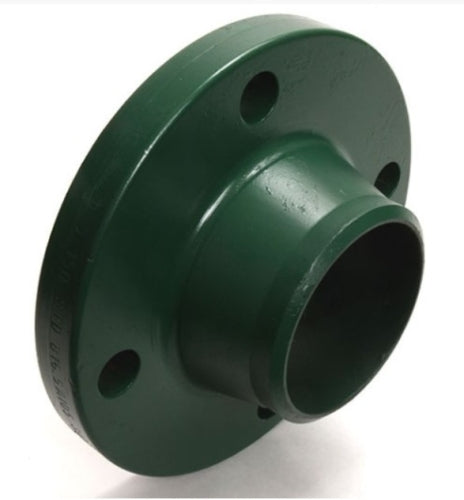

Weldbend 120-160-000 Raised Face Weld Neck Flange 16 in 150 lb Domestic

Product Description

The Weldbend Weld Neck Flange, model 120-160-000, is a raised face flange designed for various applications in pipelines and plumbing systems. This flange is made of forged carbon steel and has a nominal size of sixteen inches. It features a thickness of one point three eight inches, making it suitable for high-pressure applications with a rating of two hundred eighty-five psig.

• Material: Forged carbon steel
• Pressure rating: 285 psig
• Temperature range: -20 to 100 degrees Fahrenheit

Product Highlights

This forged carbon steel flange is ideal for connecting pipes in demanding environments and can withstand significant pressure. The raised face provides a better seal when mated with gaskets, making it a reliable choice for HVAC, plumbing, and industrial applications.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 120-160-000

Technical Specifications

• Nominal Size: 16 in
• Inside Diameter: 15-1/4 in
• Outside Diameter: 23-1/2 in
• Length Through Hub: 4.94 in
• Hub Diameter: 18 in
• Bolt Circle Diameter: 21-1/4 in
• Bolt Hole Size: 1-1/8 in
• Number of Bolt Holes: 16
• Thickness: 1.38 in
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Type: Raised Face
• Domestic/Import: Domestic
• Standards/Approvals: ASME SA105/B16.5, ASTM A105
