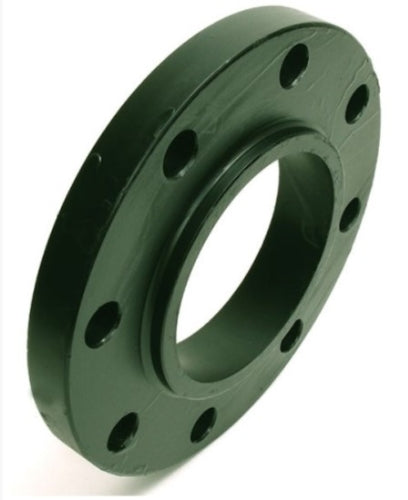

Weldbend 11A-060-050 Raised Face Reducing Slip-On Flange 150 lb 6 x 5 in

Product Description

The Weldbend Reducing Slip-On Flange with MPN 11A-060-050 is a raised face flange designed for reliable piping applications. This flange has a nominal size of six inches by five inches and is made from forged carbon steel. It is rated for 150 lbs with a pressure rating of 285 psig. This product operates effectively in temperature ranges from minus twenty to one hundred degrees Fahrenheit.

• Class 150 flanges do not have a counter bore
• Durable forged carbon steel construction
• Suitable for various industrial applications

Product Highlights

Weldbend's flange is versatile and commonly used in piping systems for its effectiveness in managing pressure and temperature.

Product Information

Standard Information

• Manufacturer: Weldbend
• MPN: 11A-060-050

Technical Specifications

• Domestic/Import: Domestic
• Material: Forged Carbon Steel
• Nominal Size: 6 x 5 in
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Type: Raised Face
• Standards/Approvals: ASME SA105/B16.5 | ASTM A105
