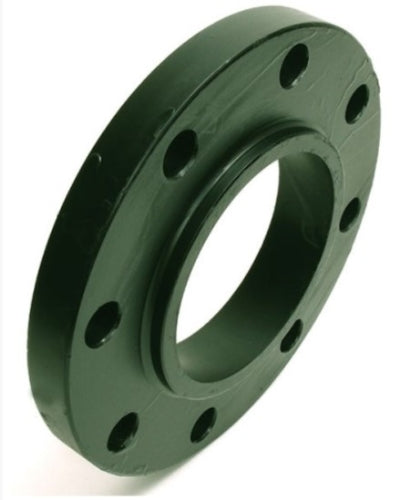

Weldbend 11A-060-040 Raised Face Reducing Slip-On Flange 150 lb 6 x 4 in

Product Description

The Weldbend reducing slip-on flange, part number 11A-060-040, is designed for use in various piping applications. It has a nominal size of six inches by four inches and a pressure rating of two hundred eighty-five psig. This flange is made from forged carbon steel, ensuring durability and reliability in demanding environments. The temperature range is from negative twenty to one hundred degrees Fahrenheit.

• Forged carbon steel construction
• Rated for two hundred eighty-five psig
• Suitable for temperatures from negative twenty to one hundred degrees Fahrenheit

Product Highlights

This raised face flange is ideal for use in situations where a smooth flow of fluids is required. The class 150 design features no counter bore, allowing for easy installation and a secure fit.

Product Information

Standard Information

• Manufacturer: Weldbend
• Part Number: 11A-060-040

Technical Specifications

• Material: Forged Carbon Steel
• Nominal Size: 6 x 4 in
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Type: Raised Face
• Standards/Approvals: ASME SA105/B16.5, ASTM A105
• Domestic/Import: Domestic
