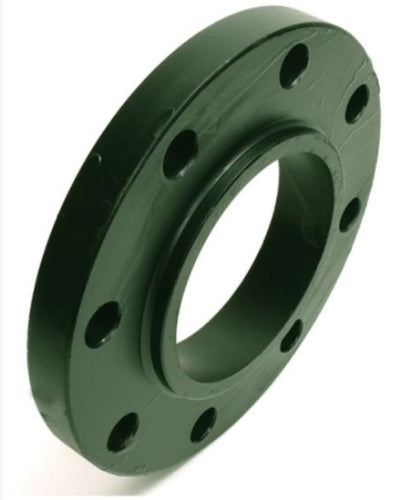

Weldbend 11A-030-022 Raised Face Reducing Slip-On Flange, 3 x 2-1/2 in, Forged Carbon Steel, 150 lb

Product Description

The Weldbend Reducing Slip-On Flange, MPN 11A-030-022, is made from forged carbon steel. It has a nominal size of three inches by two and a half inches. This flange has a pressure rating of two hundred eighty-five psig and is designed for temperature ranges from negative twenty to one hundred degrees Fahrenheit. It is classified as a 150 lb flange and is made in the United States.

• Forged carbon steel construction
• Rated for 285 psig pressure
• Temperature range from -20 to 100 degrees F

Product Highlights

This flange includes a raised face design and is suitable for a variety of pipe fitting applications.

Product Information

Standard Information

• Manufacturer: Weldbend
• Part Number: 11A-030-022

Technical Specifications

• Material: Forged Carbon Steel
• Nominal Size: 3 x 2-1/2 inches
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 degrees F
• Type: Raised Face
• Domestic/Import: Domestic
• Standards/Approvals: ASME SA105/B16.5, ASTM A105
