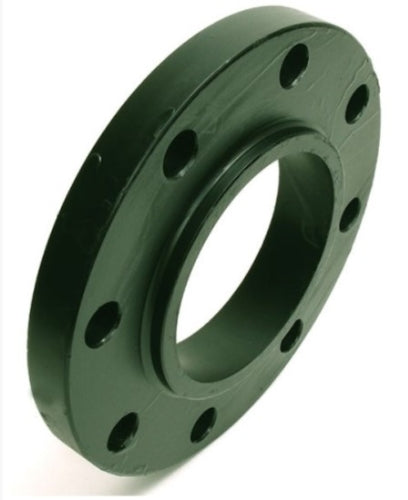

Weldbend 111-040-000 Flat Face Slip-On Flange, 4 in, Forged Carbon Steel, 150 lb, Domestic

Product Description

The Weldbend Slip-On Flange with MPN 111-040-000 is a flat face flange designed for ease of use and durability. It has a nominal diameter of four inches and is made from forged carbon steel. This flange is perfect for various piping applications that require reliable connections.

• Designed for flat face connections.
• Suitable for pressure applications up to 285 psig.
• Constructed from domestic forged carbon steel for strength.

Product Highlights

This flange is a vital component for creating tight seals in piping systems. It is ideal for use in industrial and commercial applications.

Product Information

Standard Information

• Manufacturer: Weldbend
• Material: Forged Carbon Steel

Technical Specifications

• Nominal Size: 4 in
• Inside Diameter: 4.57 in
• Outside Diameter: 9 in
• Thickness: 0.88 in
• Hub Diameter: 5.31 in
• Length Through Hub: 1-1/4 in
• Bolt Circle Diameter: 7-1/2 in
• Number of Bolt Holes: 8
• Bolt Hole Size: 3/4 in
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Standards/Approvals: ASME SA105/B16.5|ASTM A105
• Type: Flat Face
