Weldbend 105-662-010-000 1 Class 600 Socket Weld XSB RF

Brand: WELDBEND
SKU: 105-662-010-000
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

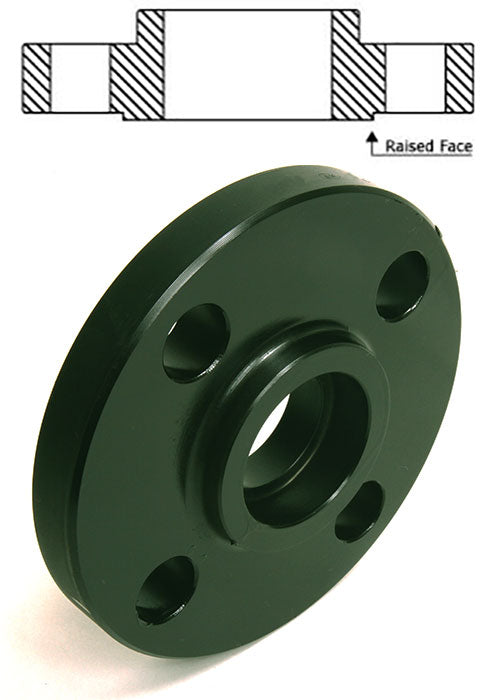

The Weldbend 105-662-010-000 is a one-inch Class 600 socket weld flange. This product is suitable for various piping applications. It features a raised face design which enhances its performance in high-pressure environments.

  • Constructed from forged carbon steel for durability.
  • Features a temperature rating of -20 to 100 degrees Fahrenheit.
  • Complies with ASME SA105/B16.5 and ASTM A105 standards.

Product Highlights

This flange is designed for use in demanding environments, ensuring safety and reliability in your pipeline systems.

Product Information

Standard Information

  • Manufacturer: Weldbend Corp
  • UPC: Not available
Technical Specifications
Nominal Size
1 in
Inside Diameter
1.36 in
Outside Diameter
4.88 in
Thickness
0.69 in
Hub Diameter
2.12 in
Length Through Hub
1.06 in
Bolt Circle Diameter
3-1/2 in
Number of Bolt Holes
4
Bolt Hole Size
3/4 in
Bore Size
XSB
Pressure Rating
1480 psig
Pressure Class
600 lb
Temperature Rating
-20 to 100 deg F
Domestic/Import
Domestic
