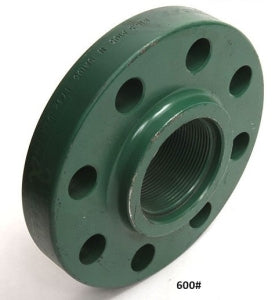

Weldbend 105-640-030-000 3 Class 600 THREADED RF

Product Description

The Weldbend 105-640-030-000 is a three-inch threaded raised face flange made from forged carbon steel. This flange is suited for applications requiring robust connections. It features eight bolt holes for secure installation and is designed for high-pressure environments.

• Nominal size: 3 inches
• Pressure rating: 1480 psig
• Thickness: 1-1/4 inches

Product Highlights

This flange is ideal for piping systems where threaded connections are necessary and provides durability in demanding conditions.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• Type: Raised Face

Technical Specifications

• Nominal Size: 3 in
• Inside Diameter: 3.63 in
• Outside Diameter: 8-1/4 in
• Thickness: 1-1/4 in
• Hub Diameter: 4-5/8 in
• Length Through Hub: 1.81 in
• Pressure Class: 600 lb
• Pressure Rating: 1480 psig
• Temperature Rating: -20 to 100 deg F
• Bolt Circle Diameter: 6-5/8 in
• Bolt Hole Size: 7/8 in
• Number of Bolt Holes: 8
• Connection Type: Thread
• Domestic/Import: Domestic
• Warranty: 1 Year Limited
