Weldbend 105-640-010-000 1 Class 600 THREADED RF

Product Description

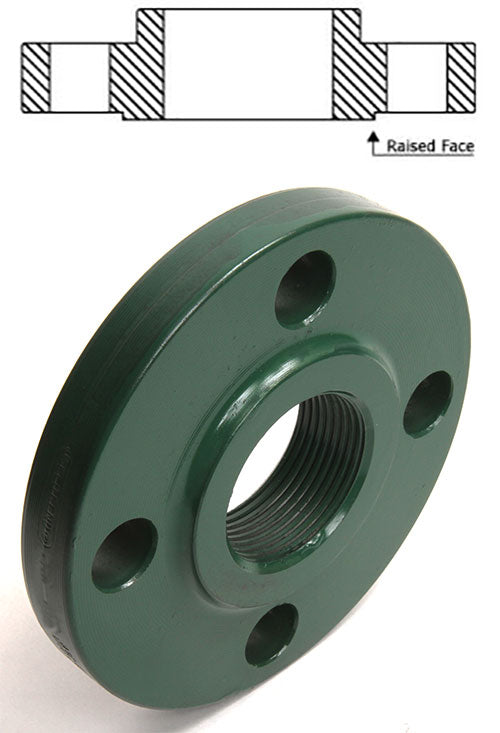

The Weldbend 105-640-010-000 is a 1 inch raised face flange designed for robust pipe connections. This durable fitting is made of forged carbon steel. It features a thread connection for secure attachment. The product is suitable for various pressure and temperature applications, making it ideal for piping systems.

• Pressure Class: 600 lb
• Temperature Range: -20 to 100 degrees F
• Manufactured by Weldbend Corp

Product Highlights

This flange is reliable for high-pressure systems requiring a raised face for effective sealing.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• Nominal Size: 1 inch

Technical Specifications

• Bolt Circle Diameter: 3-1/2 inches
• Bolt Hole Size: 3/4 inches
• Connection Type: Thread
• Domestic/Import: Domestic
• Hub Diameter: 2-1/8 inches
• Inside Diameter: 1.41 inches
• Length Through Hub: 1.06 inches
• Material: Forged Carbon Steel
• Number of Bolt Holes: 4
• Outside Diameter: 4.88 inches
• Pressure Rating: 1480 psig
• Thickness: 0.69 inches
• Type: Raised Face
