Weldbend 105-622-080-000 8 Class 600 Weld Neck XSB RF

Product Description

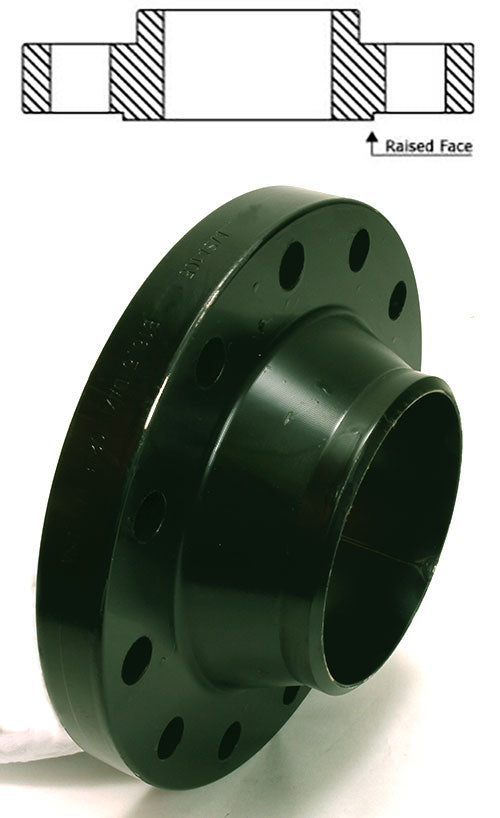

The Weldbend Weld Neck Flange, MPN 105-622-080-000, is an eight-inch nominal flange designed for heavy-duty piping systems. This raised face flange has a thickness of two point nineteen inches, suitable for high-pressure applications.

• Material: Made from forged carbon steel, ensuring durability.
• Pressure Rating: Capable of handling pressures up to fourteen hundred eighty psig.
• Temperature Rating: Designed to operate effectively in temperatures from negative twenty to one hundred degrees Fahrenheit.

Product Highlights

This flange is ideal for industrial piping systems where strength and durability are critical.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• UPC: Not available

Technical Specifications

• Bolt Circle Diameter: Thirteen and three-quarter inches
• Bolt Hole Size: One and one-quarter inches
• Bore Size: XS
• Dimensions: Eight point sixty-three inches diameter weld
• Domestic/Import: Domestic
• Hub Diameter: Ten and three-quarter inches
• Inside Diameter: Seven point sixty-three inches
• Length Through Hub: Five and one-quarter inches
• Nominal Size: Eight inches
• Number of Bolt Holes: Twelve
• Outside Diameter: Sixteen and one-half inches
• Pressure Class: Six hundred lb
• Pressure Rating: Fourteen hundred eighty psig
• Temperature Rating: Negative twenty to one hundred degrees Fahrenheit
• Thickness: Two point nineteen inches
• Type: Raised Face
