Weldbend 105-622-060-000 6 Class 600 Weld Neck XSB RF

Product Description

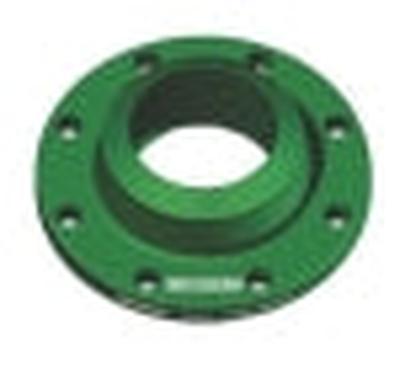

The Weldbend Weld Neck Flange, model 105-622-060-000, is designed for high-pressure applications. This flange is six inches nominal and features a raised face. It is manufactured from forged carbon steel, ensuring durability and longevity in demanding environments.

• Applicable for pressure ratings up to 1480 psig.
• Meets ASTM and ASME standards for safety and reliability.
• Includes twelve bolt holes for secure attachment.

Product Highlights

This flange offers a thickness of 1.88 inches and an inside diameter of 5.76 inches, making it suitable for various piping configurations.

Product Information

Standard Information

• UPC:
• Availability Remarks: Usually ships in twelve days. You will be notified of any delay and may cancel at that time.

Technical Specifications

• Type: Raised Face
• Material: Forged Carbon Steel
• Bore Size: XS
• Thickness: 1.88 inches
• Dimensions: 6.63 inches diameter weld
• Hub Diameter: 8-3/4 inches
• Inside Diameter: 5.76 inches
• Length Through Hub: 4-5/8 inches
• Nominal Size: 6 inches
• Outside Diameter: 14 inches
• Bolt Circle Diameter: 11-1/2 inches
• Bolt Hole Size: 1-1/8 inches
• Number of Bolt Holes: 12
• Pressure Class: 600 lb
• Pressure Rating: 1480 psig
• Temperature Rating: -20 to 100 degrees F
• Manufacturer: Weldbend Corp
• Documents: Catalog
