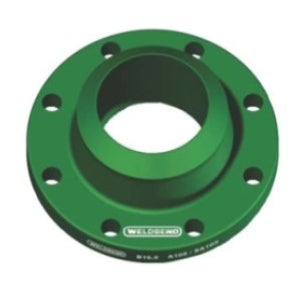

Weldbend 105-622-010-000 1 Class 600 Weld Neck XSB RF 105622010000

Product Description

This Weldbend 105-622-010-000 is a raised face weld neck flange designed for high-pressure applications. It features a nominal size of one inch and fits in various piping configurations. This flange is built to withstand 1480 psig of pressure and operates efficiently in temperature ranges from negative twenty to one hundred degrees Fahrenheit.

• Material: Forged carbon steel
• Pressure Class: 600 lb
• Standard: ASME SA105/B16.5

Product Highlights

The Weldbend weld neck flange offers durability and reliability in demanding environments, making it suitable for various plumbing and piping jobs.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• UPC: Not applicable

Technical Specifications

• Nominal Size: 1 in
• Inside Diameter: 0.96 in
• Outside Diameter: 4.88 in
• Thickness: 0.69 in
• Bore Size: XS
• Length Through Hub: 2.44 in
• Hub Diameter: 2.12 in
• Bolt Circle Diameter: 3-1/2 in
• Number of Bolt Holes: 4
• Bolt Hole Size: 3/4 in
• Pressure Rating: 1480 psig
• Temperature Rating: -20 to 100 deg F
• Domestic/Import: Domestic
• Type: Raised Face
