WELDBEND 105-322-080-000 PIPE FITTINGS
WELDBEND 105-322-080-000 PIPE FITTINGS

Weldbend 105-322-080-000 8 CLASS 300 RF WN FLG SCH80 BORE

Brand: WELDBEND
SKU: 105-322-080-000
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
LTL Delivery

This product weighs 70 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

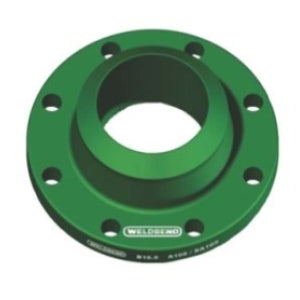

The Weldbend® 8 CLASS 300 RF WN FLG SCH80 BORE is designed for effective piping solutions. This flange has a nominal size of eight inches. It features a raised face design for improved sealing and durability.

  • Made from forged carbon steel
  • Rated for 740 psig at temperatures from -20 to 100 degrees Fahrenheit
  • Includes 12 bolt holes for secure installation

Product Highlights

This product is suitable for high-pressure applications in various industries.

Product Information

Standard Information

  • Manufacturer: Weldbend Corp
  • Model Number: 105-322-080-000
Technical Specifications
Nominal Size
8 in
Inside Diameter
7.98 in
Outside Diameter
15 in
Thickness
1.56 in
Hub Diameter
10-1/4 in
Length Through Hub
4.32 in
Bolt Hole Size
1 in
Bolt Circle Diameter
13 in
Number of Bolt Holes
12
Bore Size
XSB
Pressure Class
300 lb
Pressure Rating
740 psig
Temperature Rating
-20 to 100 deg F
Domestic/Import
Domestic
